Recently, HuiRui's self-developed iLAM+® series heavy-duty robotic laser cladding equipment was successfully delivered to an overseas customer, thanks to its outstanding performance and considerate service. The delivery has garnered high praise from the customer, adding another shining moment for "Made in China with Intelligence" on the international stage.
The overseas customer highly praised it as / A perfect embodiment of professionalism and excellence
"Throughout the entire delivery process, the HuiRui team exhibited a high level of professional competence and meticulous work attitude. Not only did they fulfill the contractual obligations to a high standard, but they also proactively assisted us in resolving challenges related to the processing of specific workpieces in our production. Since the equipment was put into operation, its performance was truly outstanding, giving us a whole new perspective on HuiRui's product quality and expertise. At the same time, it has also made us truly appreciate that HuiRui's commitment to 'precise technology and exceptional service' is no empty promise." This recognition and praise from the customer serves as the ultimate affirmation for the HuiRui team.
Customized Solutions / Focusing on Needs, Overcoming Challenges
Products of the Huirui iLAM+® series adopt a robot + multi-axis linkage motion mechanism, featuring multi-functional flexibility and wide application in the fields of complex part repair and surface strengthening. The heavy-duty robotic cladding equipment delivered this time is developed based on the iLAM+® series product R&D platform, specifically designed to meet the customer's needs for efficient repair and surface strengthening of large industrial parts. In response to the local power supply conditions, a 3-phase 200V integrated voltage stabilization and transformation power supply has been customized for the equipment. Moreover, in accordance with the characteristics of the local power grid, a 40KW UPS (Uninterruptible Power Supply) has been added, creating a tailor-made overall solution for high-performance metal component additive manufacturing and technical services for the customer. This equipment helps the customer accurately solve the problems of efficient repair and quality control of high-performance components, ensuring the smooth progress of production.

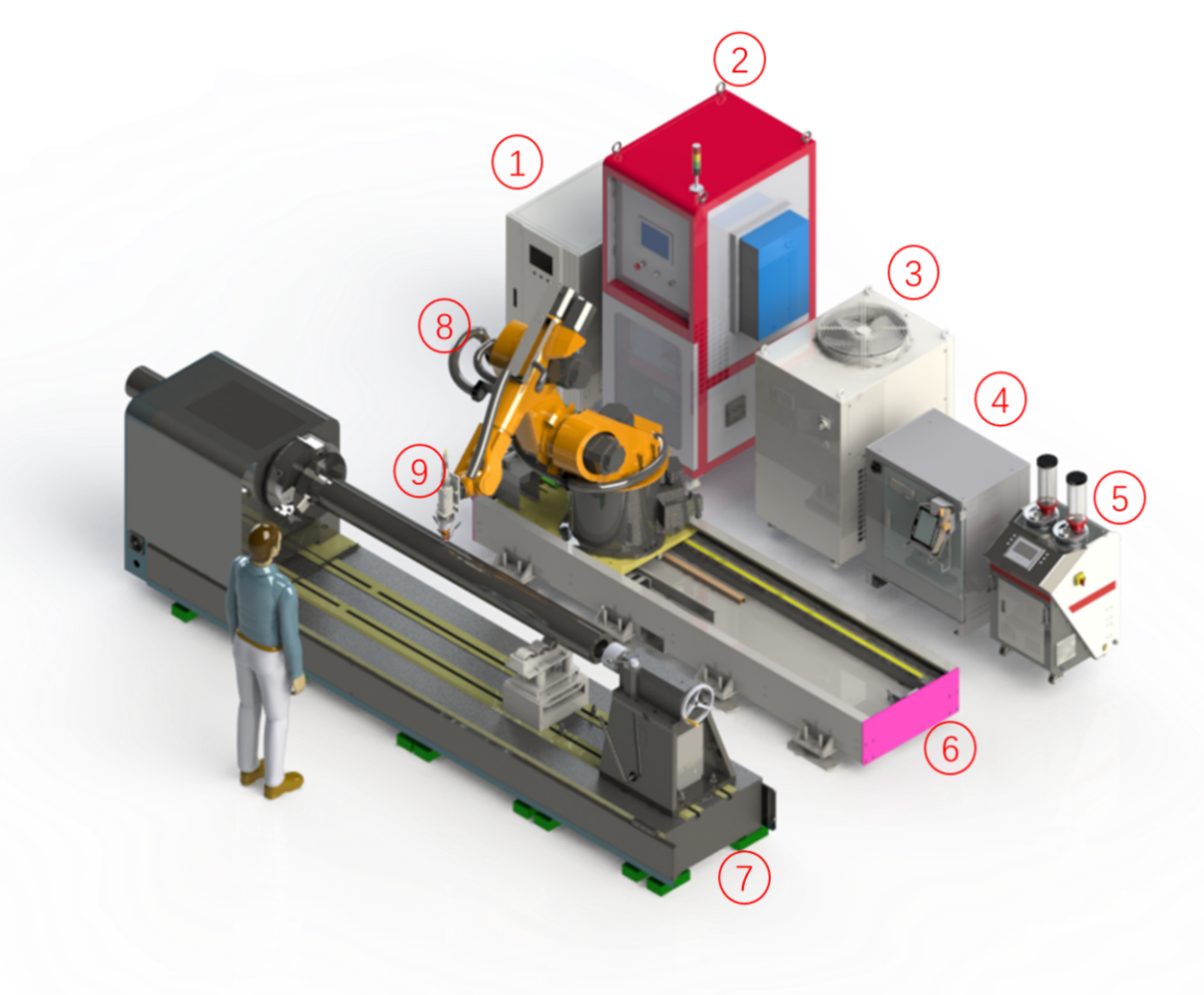

1. Regulated power supply、2.Laser controller cabinet、3.Water chiller、4.Robot controller、5.Powder feeder、6.Sliding rail、7.Rotary table、8.Robot、9.Laser head and nozzle

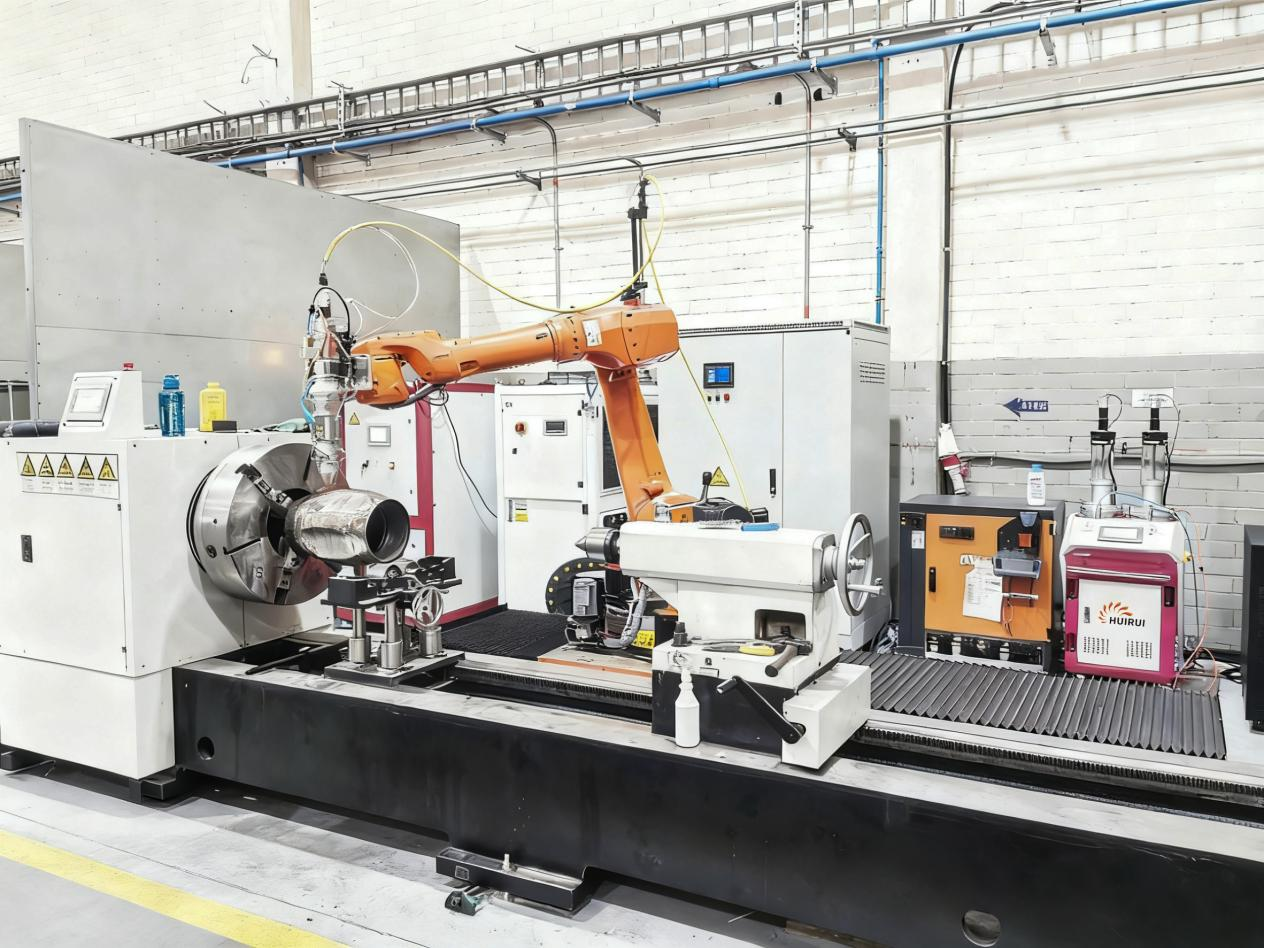

This equipment integrates an industrial six-axis robot and a sliding rail structure. With its flexible motion trajectories and powerful control capabilities, it can meet the application requirements of various scenarios. In terms of core component configuration, HuiRui adheres to the strategy of "flexible adaptation + self-control and independence". The laser module supports custom selection and configuration, fully meeting customers' individualized needs. The main core components are all manufactured. Moreover, both HuiRui's laser cladding equipment and its core components have passed CE certification, providing a strong guarantee for the stable operation of the equipment.
CE certificates for HuiRui equipment and its core components

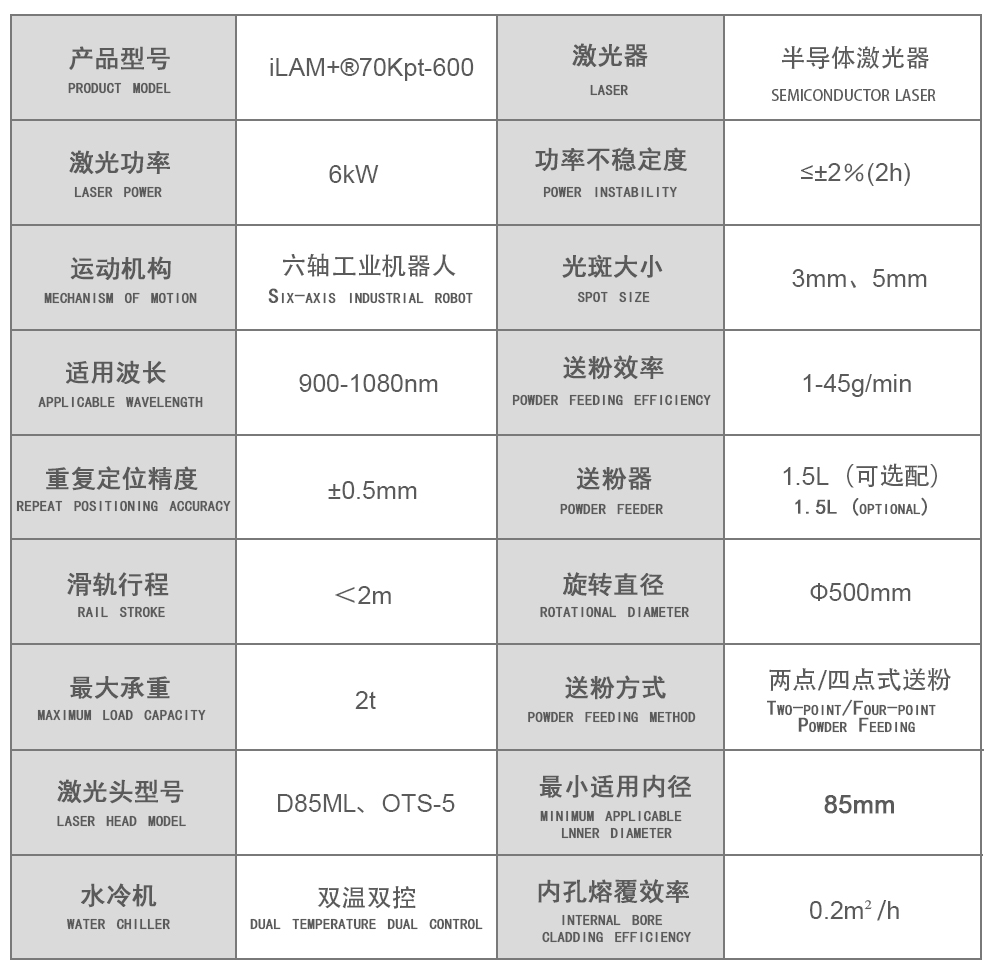

Equipment Parameters:

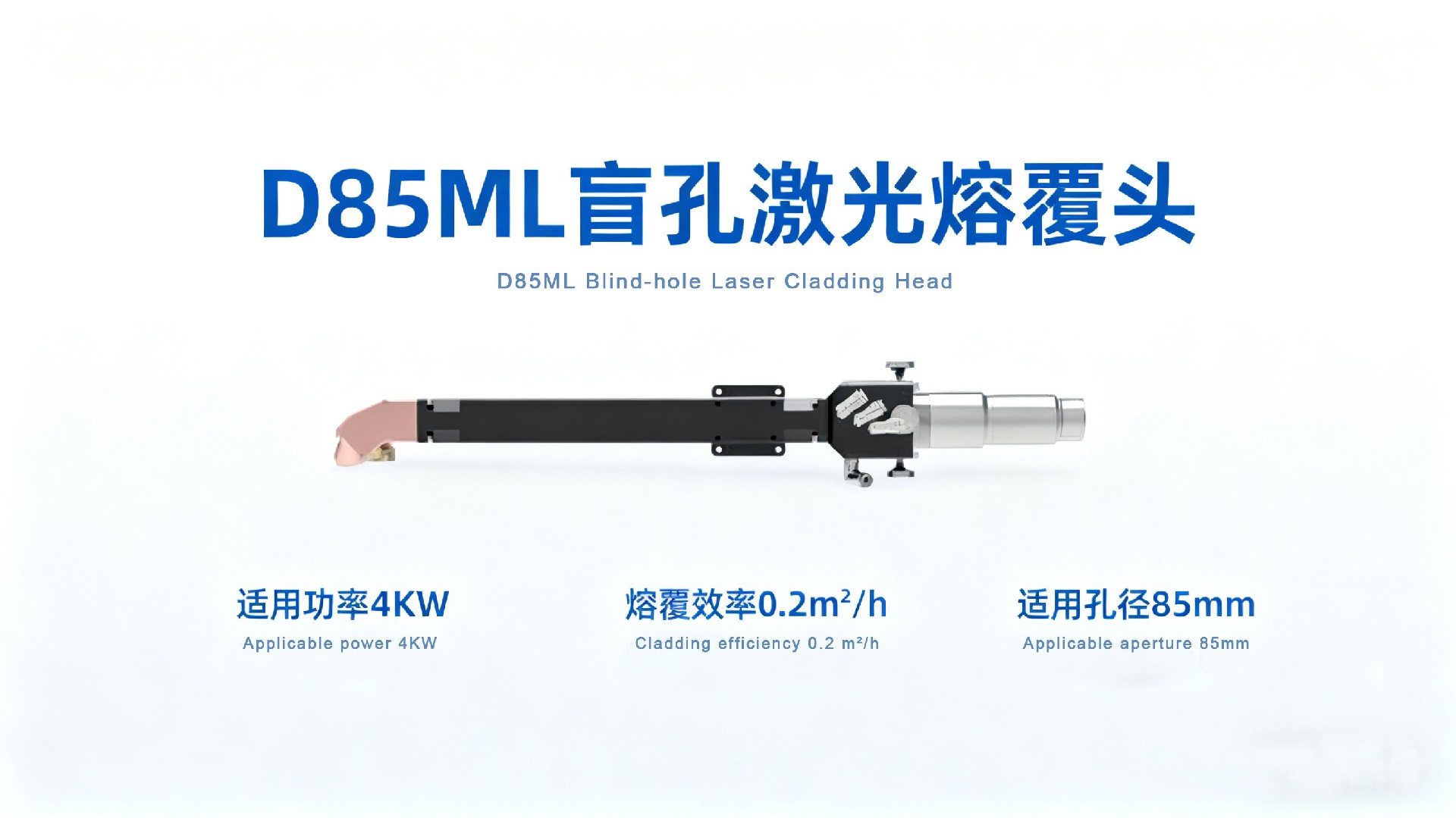

Among them, the D85ML internal diameter laser cladding head developed by HuiRui stands out as a major highlight. With an applicable laser power of 4KW and compatibility with Laserline laser source, it achieves an internal cladding efficiency of 0.2m²/h. This head can operate stably and efficiently on workpieces with a bore diameter of 85mm and a depth of up to 2m, showcasing industry-leading technological prowess. It perfectly resolves many of the challenges customers previously faced in internal bore cladding, significantly enhancing the processing efficiency and quality of complex workpieces.
Thoughtful Service / Accompanying You Throughout the Journey, Empowering Your Progress
HuiRui not only provides customers with high-quality equipment but also offers a two-week on-site installation and training service. During the training, the technicians were patient, meticulous, and provided in-depth explanations, helping the customers quickly master independent operation and basic maintenance skills, thereby laying a solid foundation for the subsequent stable operation of the equipment.
HuiRui's technical team provides equipment-related training for customers
Equipment Highlights / Exceptional Performance, Leading the Industry
Efficient collaboration between the laser and the robot
The equipment is equipped with a 6KW laser, perfectly adapting to an industrial six-axis robot and a sliding rail. Leveraging its exceptional operational flexibility, the robot, in conjunction with the precisely moving sliding rail, jointly establishes an efficient and stable processing system. The laser device strictly adheres to the EN 13849 safety standard, achieving dual certification of Safety Level 3 and Performance Level D, thereby providing solid safeguards for production safety. This integrated configuration enables the equipment to handle diverse processing scenarios, meet complex demands, and facilitate efficient and smooth production operations.
All core components are self-manufactured
HuiRui's self-developed core components, such as the powder feeder, laser head, and nozzle, work seamlessly together to ensure the overall stable performance of the equipment. Paired with a custom-designed internal diameter laser cladding head tailored for customers, it can accomplish cladding on internal bores with a diameter of 85mm and a depth of up to 2m, providing robust support for the processing of complex workpieces.
The spindle rotary table exhibits strong compatibility with the sliding rail
The spindle rotary table offers adjustable rotational speeds ranging from 0.1 to 15 rpm, with a maximum clamping length of 2m. At low speeds, it ensures stable cladding for high-precision annular workpieces, while at high speeds, it efficiently processes regular cylindrical workpieces. This adaptability to different rotational speed processes significantly enhances machining compatibility, meeting the diverse production needs of customers.
The material and process solutions are highly flexible
The equipment offers flexible material and process options, allowing for the free selection of various cladding materials such as iron-based, nickel-based, cobalt-based, and titanium alloys. It is widely applicable in scenarios like dimensional restoration and surface strengthening, providing a one-stop solution that effectively enhances production efficiency and product quality.
Application Case / Strength Witnessed, Remarkable Results Achieved

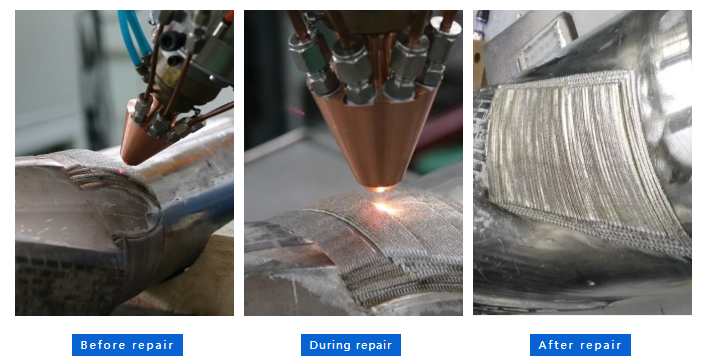

When the stabilizer and its sleeve experience wear, laser cladding technology can be employed to repair the worn areas and restore the original dimensions of the components. The repair material utilized is a non-magnetic hard alloy with a hardness of HV900 and high wear resistance, enabling it to effectively combat wear and erosion, thereby significantly extending the service life of the stabilizer.

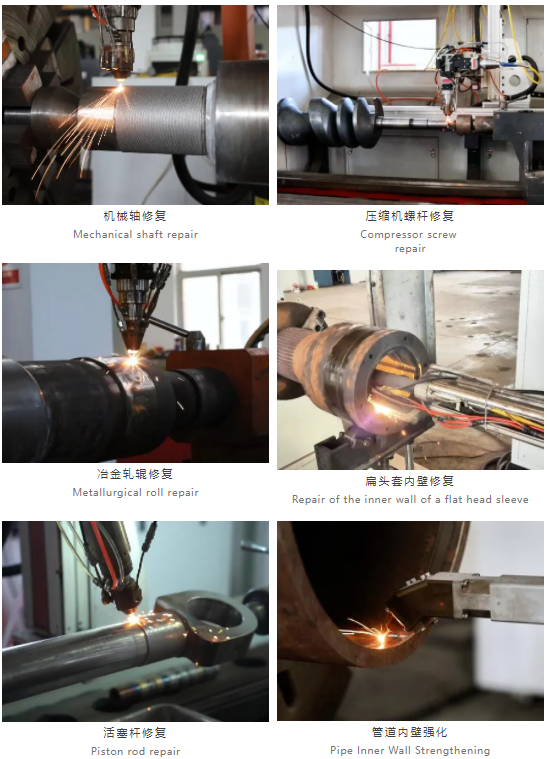

Other application cases:
Looking ahead / Forge ahead with perseverance and step onto the global stage
This successful delivery of this overseas project not only serves as a strong endorsement of HuiRui's metal additive manufacturing technology and services in the international market but also makes the label of "Made in China with Intelligence" increasingly prominent on the global stage. HuiRui's equipment, with its outstanding product performance, stable quality, and considerate service support, provides the confidence for HuiRui to deeply cultivate and expand in the global market. Each successful collaboration has accumulated invaluable experience for HuiRui as it strides towards an even brighter future.
In the future, HuiRui will always uphold the mission of "providing customers with professional and high-quality products and services to meet their higher demands for advanced manufacturing technologies." With technological innovation as its core driving force, HuiRui will continuously hone its core competitiveness in the field of metal additive manufacturing. Carrying superior equipment and services, HuiRui will venture into a broader global arena, allowing the strength of "Made in China with Intelligence" to illuminate more overseas markets and compose even more glorious chapters.
